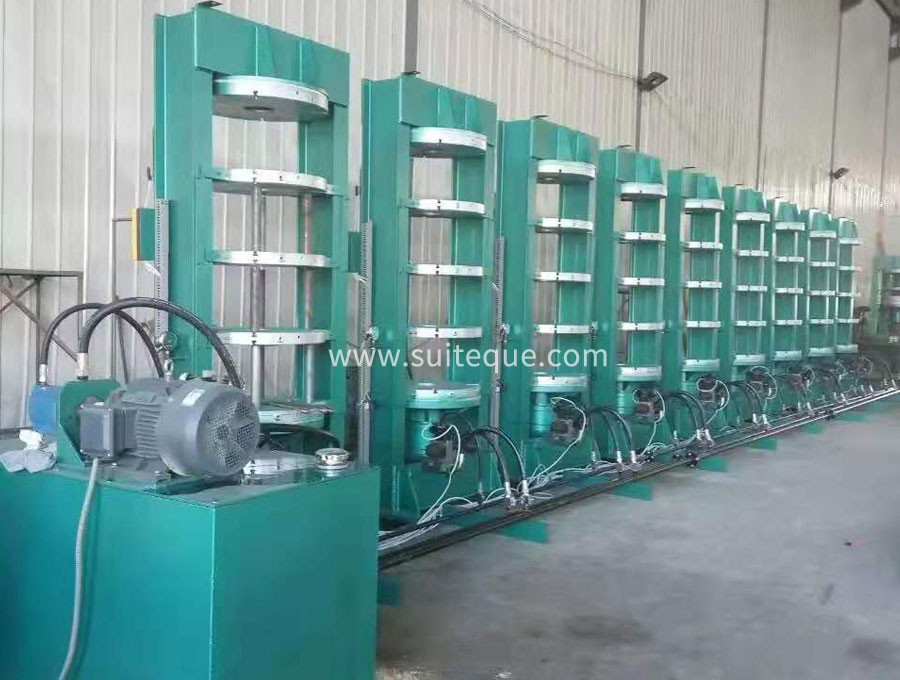

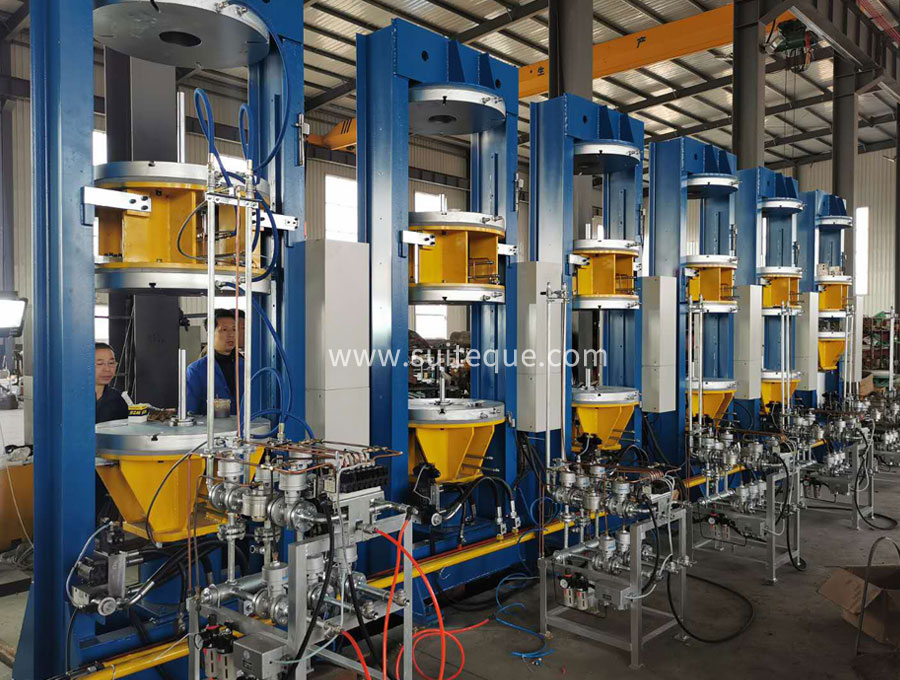

Bladder shaping tire curing press

Type

LLB-650/40

LLB/M-800/60

LLB-800/100

Max. Closing mold force(T)

25-40

60

80-90

Diameter of heating plate(mm)

500-650

800

800-840

Space between plate(mm)

300-600

500-600

600-650

Applicable rim diameter(inch)

4”5”6”8”

8”-16”

16”-18”

Qty. Of mold(set)

2

2

1

Diameter of plunger(mm)

200

200

290

Diameter of center pole(mm)

25-35

35-40

40

Stroke of center pole(mm)

200

200

300

Working air pressure(Mpa)

0.6-0.8

0.6-0.8

0.6-0.8

Internal air pressure(Mpa)

1.8

1.8

1.8

Internal steam pressure(Mpa)

0.8-1.5

0.8-1.5

0.8-1.5

Internal pressure of preshaping(Mpa)

0.1-0.2

0.1-0.2

0.1-0.2

Motor power(kw)

7.5

7.5

11

Overall diameter of principle machine(mm)

1200x900x2300

2400x900x2910

2700x1300x2550

Overall size of pump(mm)

1000x600x1200

1000x600x1200

1520x1130x1300

Weight of principle machine(kg)

2500

2800

3500
