Tire building machine series

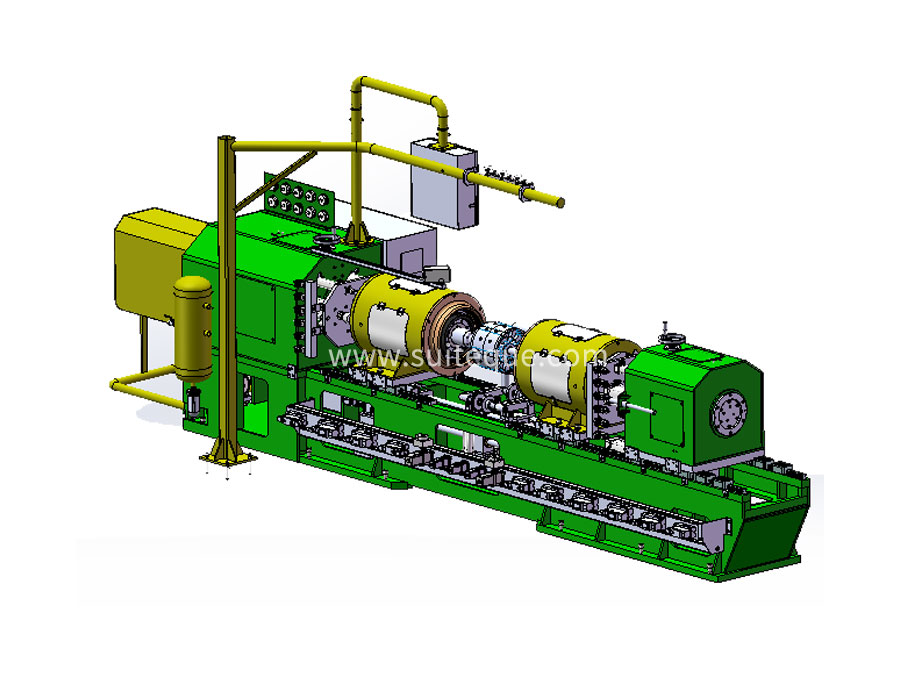

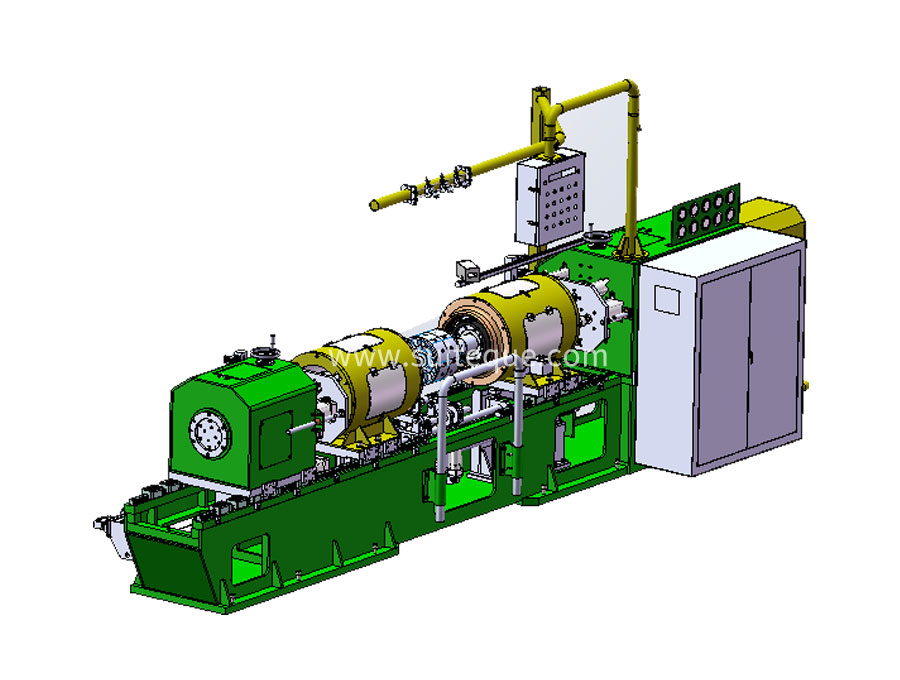

Bladder turn-up tire building machine

【Model】:
【Application】:
【Characteristics】:

Applicant
This machine is suitable for motorcycle tire, car tire, truck car tire building.
Structure feature
Its forming drum adopts metal AB structure while tire building adopts finger turn down, bladder turn up.

Type	BTU-0814	BTU-1518	BTU-1912
Bead diameter(mm)	8”-14”	15”-18”	19”-21”
Chuck width(mm)	180-450	130-450	130-450
Spindle center height(mm)	900	900	900
Spindle speed(r/min)	35/70/200	35/70/200	35/70/200
Overall size(mm)	578015002030	592516002030	592516002030
Weight(kg)	5200	6200	6200
