Rubber extruder series

  • Extruder
Extruder

Extruder

  • 【Model】:
  • 【Application】:
  • 【Characteristics】:

Applicant

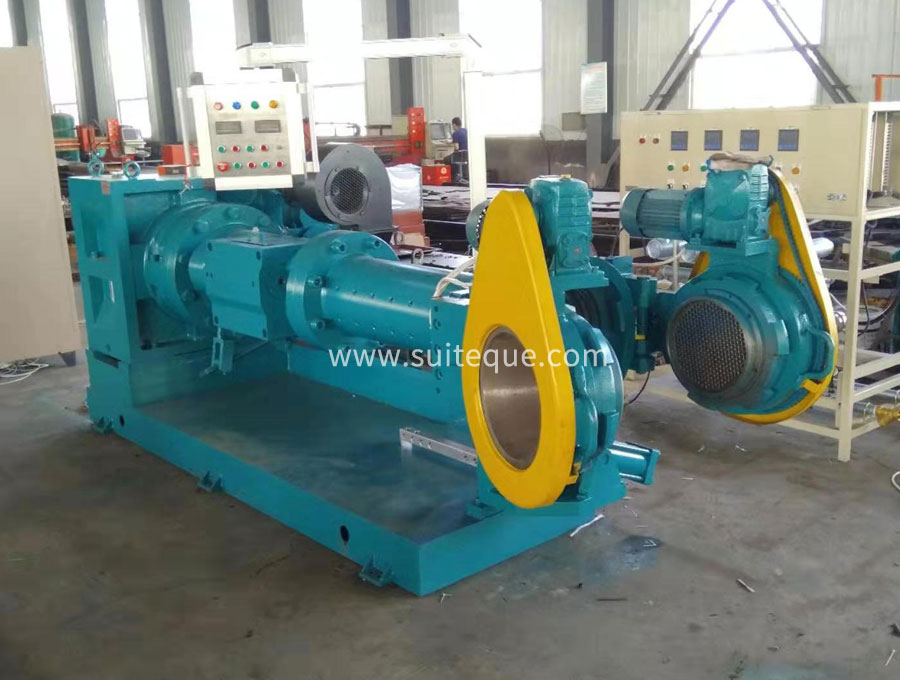

Normal cold feeding extruder is used in China rubber industry in recent years. Compared with common cold feed rubber extruder. It has high production capacity, low rubber raw material temperature, low energy consumption, good mixing effect, even plasticizing. The machine is widely used in rubber hose, inner tube, rubber strip, inner linear, rubber seal strip etc. Extruding. Also can be used to supply rubber for small size calender.

Type

XWD-50

XWD-65

XWD-75

XWD-90

XWD-120

Screw diameter(mm)

Φ50

Φ65

Φ75

Φ90

Φ120

Length-diameter ratio of screw

12:1

12:1

14:1

12:1

16:1

Revolving speed of screw

7-73

8-75

6-60

7-67

5-50

Max. Production capacity(kg/h)

60

120

180

400

1000

Driving power(kw)

11

30

37

55

110

Weight(kg)

1100

1650

1700

2500

5000

Overall size(mm)

1550*1050*1500

1900*800*1500

2340*1150*1250

2440*1000*1450

3400*1100*1100
