Inner tube extrusion line series

  • Inner tube extrusion line

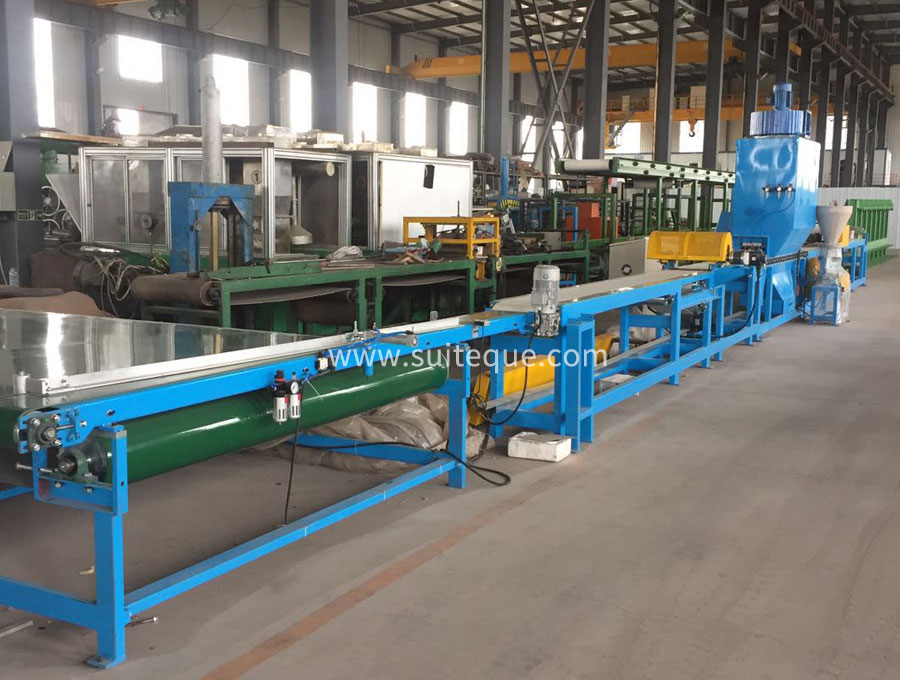

Inner tube extrusion line

Inner tube extrusion line

  • 【Model】:
  • 【Application】:
  • 【Characteristics】:

Applicant
Mainly used for production of inner tube with rubber base tube valve, also can be used for common valve of bicycle, motorcycle, car, truck inner tube production.
Structure features:
The cooling line is applied for cooling, blowing off, printing, hole punching, valve pitting, soap stoning, length limited cutting after tube being extruded. The operation is fully automatic, with PLC control and adjusting for saving labor, for high efficiency producing and less defective rate. The whole line is a linked driving with inverter control, that the speed can be adjusted freely.

Type

NSX-ML

NSX-L

Specification of tubes

Inner tube of motorcycle/bicycle

Big inner tube

Double layer width of tube(mm)

<200

<420

Line speed(r/min)

10-40

8-305

Diameter of punching hole(mm)

6-8

8-10

Pressure of compressed air(Mpa)

0.6

0.7

Total capacity(kw/h)

14

22

Weight(kg)

5000

7000

Overall size(mm)

23500x1000x850

35000x1300x850
