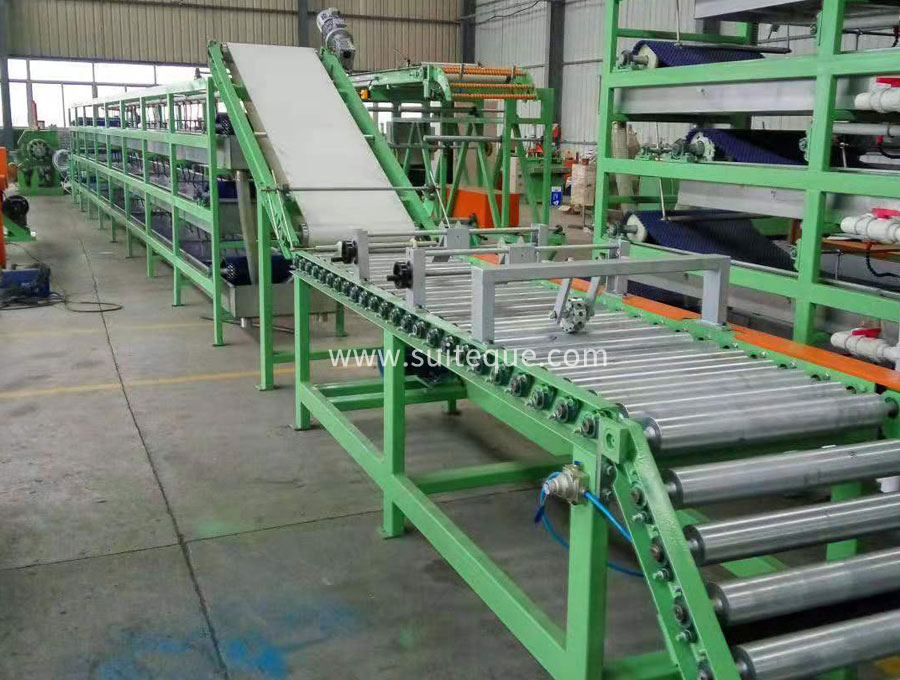

Thread cooling line series

  • Thread cooling line series
Thread cooling line series

Thread cooling line series

  • 【Model】:
  • 【Application】:
  • 【Characteristics】:

Application
Used for cooling, cutting and collecting tire thread or sidewall of bias tire and radial tire after extrusion.
Structure features:
Consisting of take-off, contraction, continuous weighing, marking, calendaring and sticking base system, cooling, speed set point setting, cut-off, accelerated separation, water blow-off, inspection, spreading and spraying rubber cement. Take-up device etc. And designed according to the domestic and foreign advanced technologies, with speed regulation by A. C. frequency conversion, PLC control, entire line synchronization, no stretching for products.

Line speed

5-25 m/min

Width of production roll

650mm

Extraction height

900mm

Pick-up temperature

<=40°

cutter

Max. Thickness of the thread cutting:20mm

Max. Cutting width

450mm

Range of cutting angle adjustment

35°±5°

Length tolerance of the cutting component less than

±3

Cutting frequency

10-15cuts/min

Pressure of comp0ressed air

0.6-0.8Mpa

Total motor power

23.3kw

Cooling water consumption

50-60m³/h

Overall size

28000x2000x2800

Weight

20000kg
