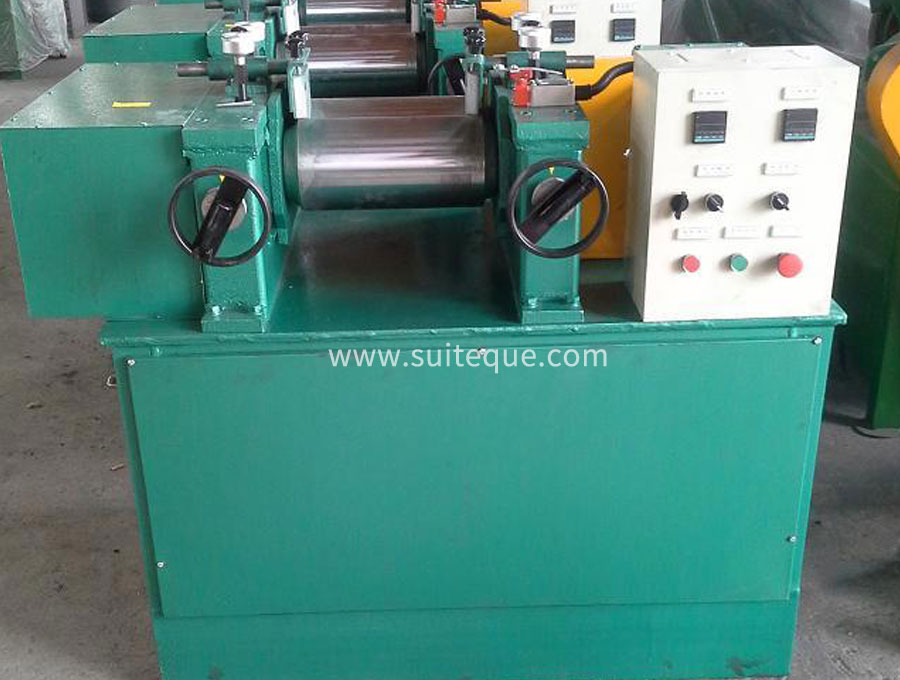

XK-160 Rubber Mixing Mil

Application:
Open rubber mixing mill is mainly used for cooking, rubber sheeting, gel breaking, plasticating and mixing.
Structure:
This machine is mainly has one based, frame, front and rear drum, gear, reducer, distance adjusting device, roller temperature adjusting device, a safety switch, an electric control system.
Alloy chilled cast iron roller material, having high hardness and wear resistance, roller temperature adjusting device, to the cylinder is filled with steam or cooling water or regulate the temperature of the roller, to meet the process requirements.

Type	XK-160	XK-230	XK-250	XK-300
Diameter of roll(mm)	160	230	250	300
Length of roll(mm)	320	600	620	750
Line speed of front roll(m/min)	8.95	10.21	14.1	15.1
Speed ratio of roll	1:1.35	1:1.19	1:1.17	1:1.25
Max roller spacing(mm)	4	7	8	10
Capacity per.  Batch(kg)	1-2	6-10	8-15	15-20
Driving motor power(kw)	5.5	15	18.5	22
Overall size(mm)	1380*860*1320	2800*1200*1120	3400*1500*1120	3450*1500*1500
