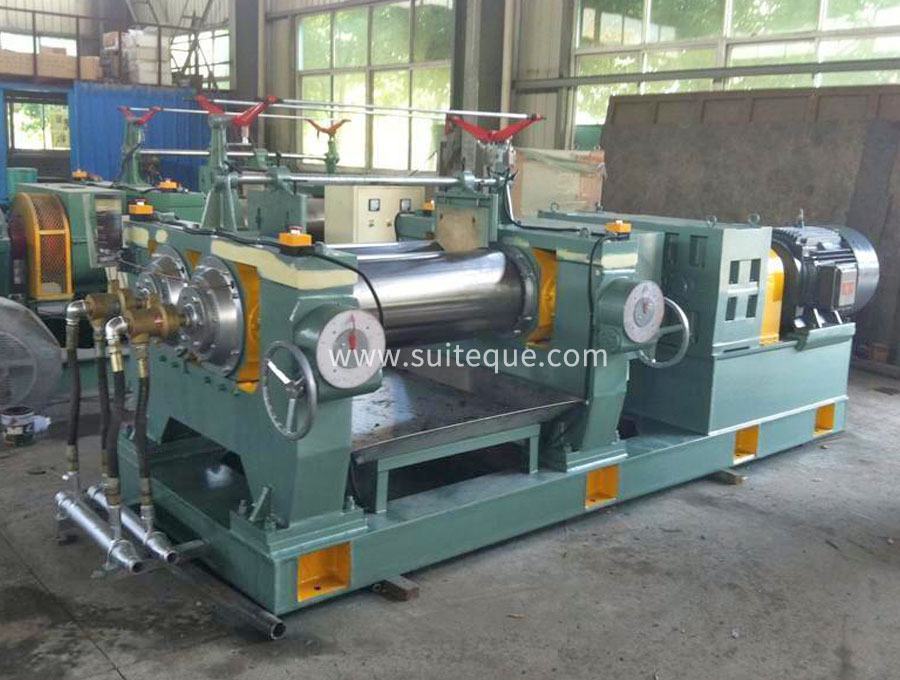

XK-450 Rubber Mixing Mill

Application:
Open rubber mixing mill is mainly used for cooking, rubber sheeting, gel breaking, plasticating and mixing.
Structure:
This machine is mainly has one based, frame, front and rear drum, gear, reducer, distance adjusting device, roller temperature adjusting device, a safety switch, an electric control system.
Alloy chilled cast iron roller material, having high hardness and wear resistance, roller temperature adjusting device, to the cylinder is filled with steam or cooling water or regulate the temperature of the roller, to meet the process requirements.

Type	XK-360	XK-400	XK-450	XK-560	XK-550B
Diameter of roll(mm)	360	400	450	560/510	550
Length of roll(mm)	900	1000	1200	1530	1500
Line speed of front roll(m/min)	16.25	18.65	24.26	27.72	27.94
Speed ratio of roll	1:1.25	1:1.27	1:1.27	1:1.2	1:1.22
Max roller spacing(mm)	10	10	15	15	15
Capacity per.  Batch(kg)	20-25	18-35	25-50	35-50	50-60
Driving motor power(kw)	30	37	55	90	110
Overall size(mm)	3780*1850*1750	4350*1850*1785	5200*2380*1840	5480*2284*1978	5870*2284*1978
